Sliding Door Roller - 7/8 Inch Steel - Flat
SKU: 13260
$36.54
In stock · Ships from Kansas City
Will this fit your door?
Clean the track before you install. Skip WD-40. Use dry silicone only on a clean rail.
Key specs
- Configuration
- Single
- Roller Edge Type
- Flat
- Roller Material
- Steel
- Housing Material
- Diecast
- Tab Type
- Unique Housing
- Primeline
- D1613

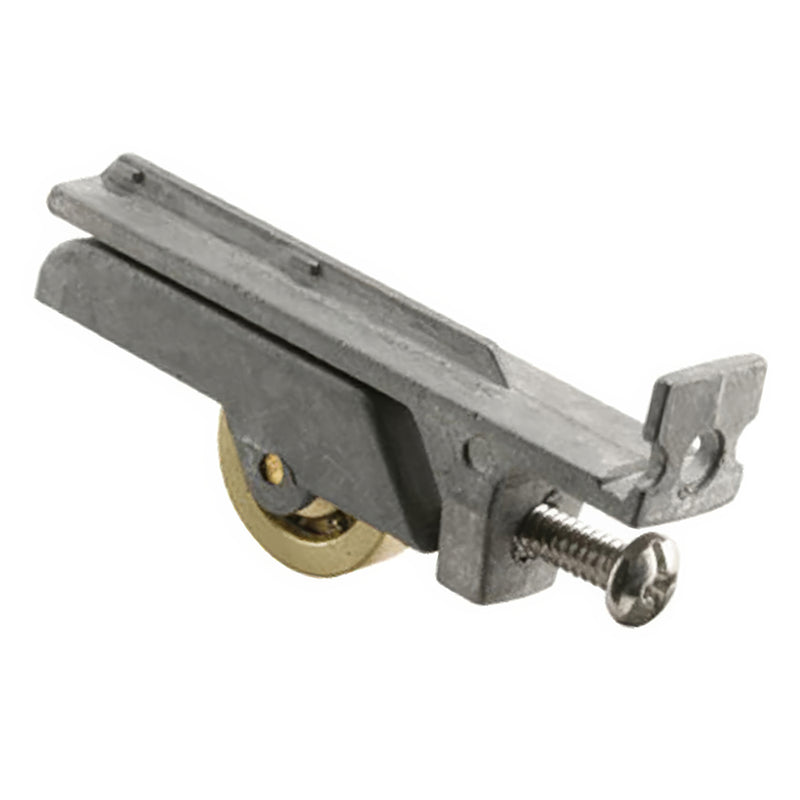

Single Steel Roller Assembly for Sliding Patio Doors
Restore smooth, effortless glide to your sliding patio door with this rugged single roller assembly built around steel ball bearings and an adjustable diecast housing. PatioDoorParts.com is a trusted dealer of sliding glass patio door rollers, and this part is engineered to suit a wide range of door manufacturers.

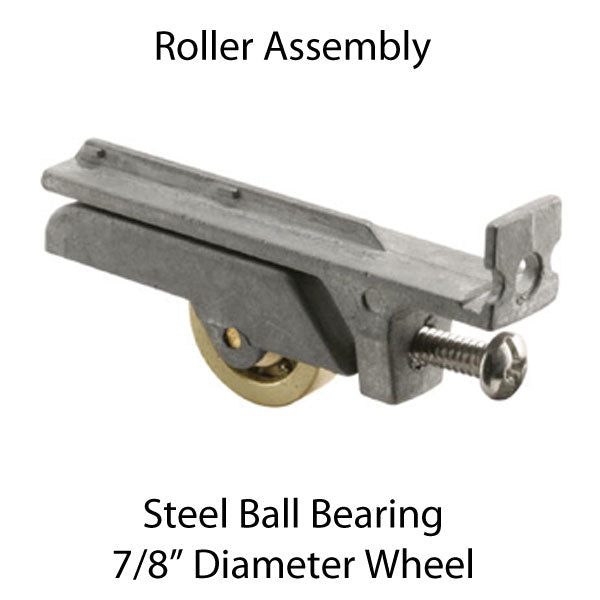

The roller assembly is fitted with steel ball bearings, and the diecast housing offers adjustability. This design is shared by several door manufacturers. Priced and sold individually. Contents 1 roller assembly.

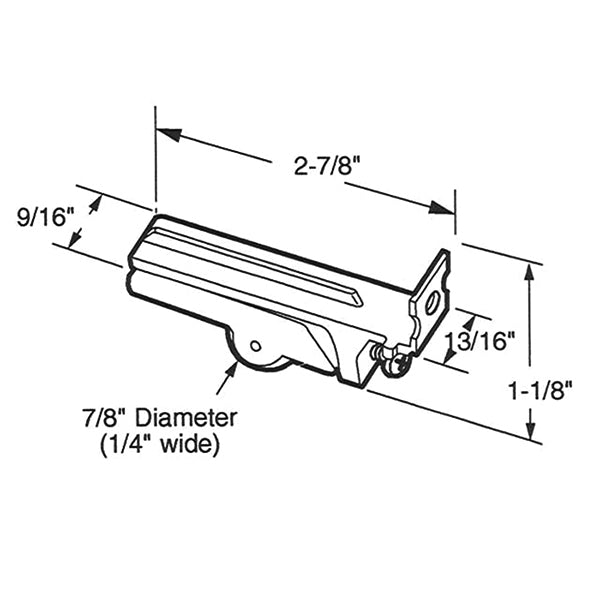

DIMENSIONS
| Specification | Inches | Metric |
|---|---|---|
| Wheel Diameter | 7/8 inch | 22.2 mm |
| Roller Width | 1/4 inch | 6.4 mm |
| Housing Width | 13/16 inch | 20.6 mm |
TECHNICAL SPECIFICATIONS
| SPECIFICATION | VALUE |
|---|---|
| Manufacturer | Patio Door Parts |
| SKU / Part No. | 13260 |
| Weight | 0.2 lb |
COMPATIBILITY
| WINDOW / DOOR SERIES | FITS |
|---|---|
| Patio Door (Standard) | ✓ |
| Sliding Glass Door | Check SKU |
| French Door | Check SKU |
| Folding / Bi-fold Door | Check SKU |
| Other Brands | Contact Us |
CUSTOMER REVIEWS
Reviews are coming soon. Need help confirming fit? Ask a door expert.
Most in-stock parts ship the same business day. Most orders ship within 2 to 5 business days.
Contiguous US rates
Alaska and Hawaii may be extra.
| Method | Rate |
|---|---|
| USPS Snail Mail (First Class, 10 to 21 days) | $11.95 |
| USPS Priority Mail (7 to 10 days) | $14.95 |
| UPS Ground | $19.50 |
| 2nd Day Air UPS | Call office |
Carrier may differ from the option selected at checkout based on size, weight, and destination. Prefer a specific method? Call our office or note it at checkout.
International
- Canada: $49.95 (about 10 to 15 business days once shipped)
- Mexico and outside North America: $69.95 (about 10 to 15 business days once shipped)
- Customer is responsible for duties and import taxes
For returns or cancellations, see our returns page. Full details on damaged orders, packing, and policies are on our shipping page.
You may also like
How to confirm fit
Wheel diameter is the size of the round wheel across its center. Measure the wheel only, not the metal housing.
Measure this
Across the center, outer edge to outer edge. Ignore the housing, axle heads, rivets, and adjustment screw.
- Retract the rollers and remove the door panel if needed.
- Slide the roller assembly out of the rail.
- Find a less-worn spot on the wheel (flat spots read small).
- Measure through the center with a ruler or calipers.
- For tandem, measure one wheel only. Do not add both together.
Edge tip: Flat has a smooth rim. Concave / grooved has a U or V in the middle.
Open full wheel guideHousing width is the metal cassette size side to side. It is the key fit dimension for most patio door rollers.
Measure this
Metal housing side to side where the cassette fits the door pocket. Ignore the wheel, tabs, and overall length.
- Retract the rollers and remove the panel if needed.
- Slide the metal housing out of the bottom rail.
- Look at the narrow side of the housing, not the wheel face.
- Measure side plate to side plate across the main metal body.
- Ignore lips, tabs, and flanges that stick out.
Do not use: wheel diameter, tab length, or the rail opening as housing width.
Open full housing guideTab style is the back mounting shape. Match the tab first, then confirm diameter and housing in the Roller Finder.
How to inspect
- Lift or tip the door panel enough to reach the bottom rollers.
- Loosen the adjustment screw and slide the housing out.
- Hold the housing so you can see the back clearly.
- Compare the mounting shape to the tab photos on the identify page.
- Photograph the back straight on, plus one side view, before you order.
Tab style is independent of wheel diameter and material.
