Sliding Door Roller - 1-1/2 Inch steel
SKU: 13991
In stock · Ships from Kansas City
Will this fit your door?
Clean the track before you install. Skip WD-40. Use dry silicone only on a clean rail.
Key specs
- Configuration
- Single
- Roller Material
- steel

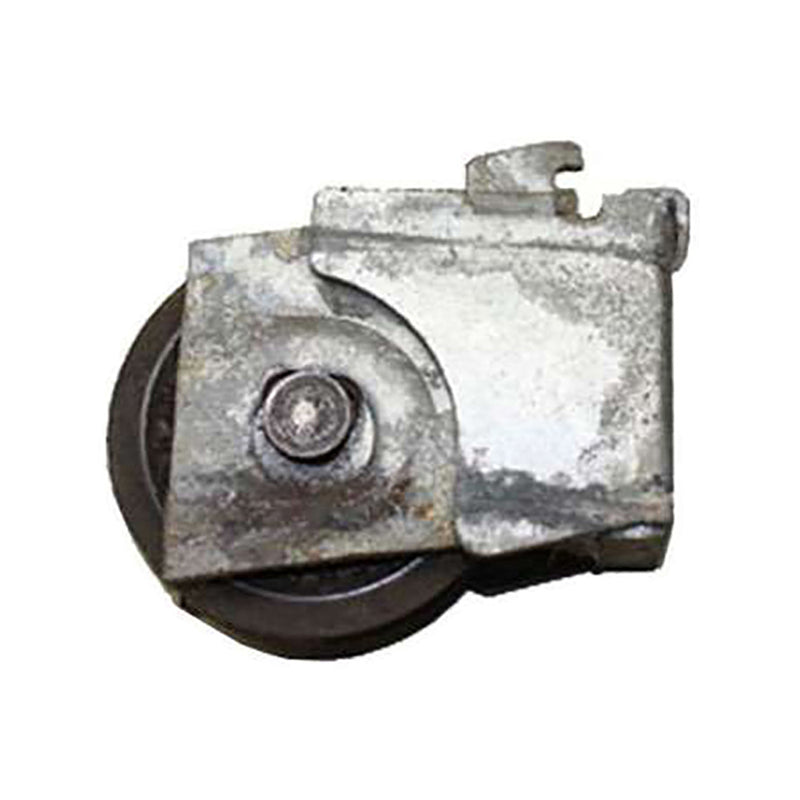

Single Steel-Wheel Roller Assembly for Panaview Sliding Doors
Get your Panaview sliding door gliding smoothly again with this rugged steel-wheel roller assembly, engineered for dependable, long-term use. PatioDoorParts.com is a trusted dealer of sliding glass patio door rollers, so you can order with confidence.

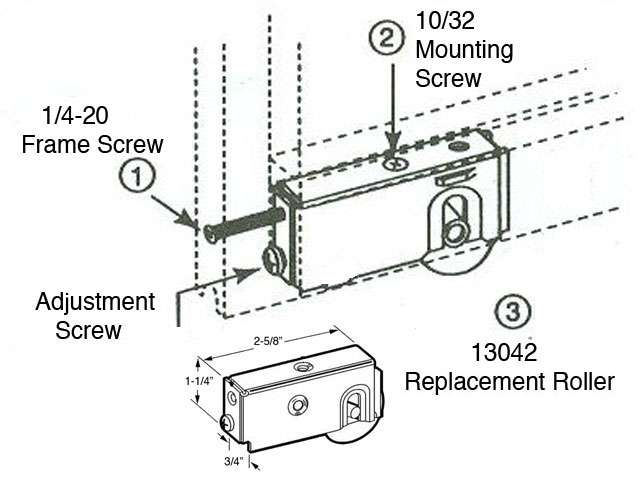

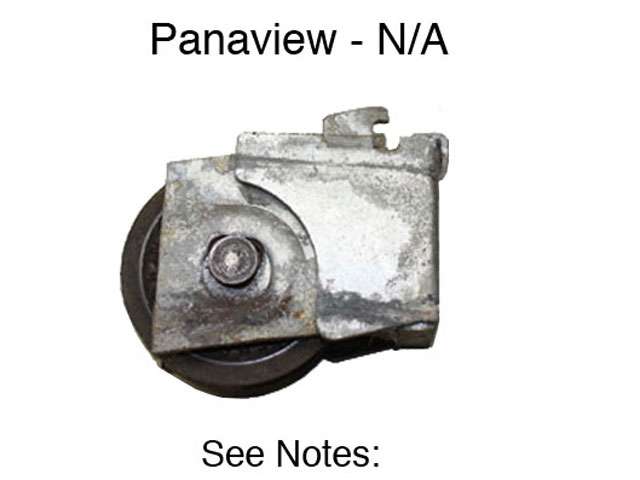

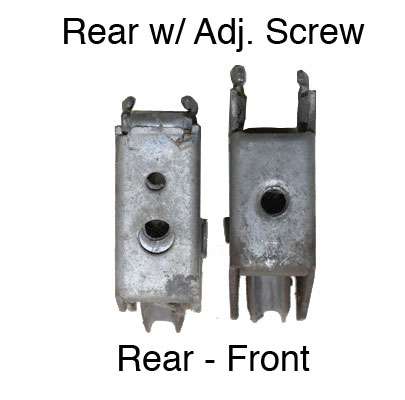

Fits Panaview sliding doors. The original front roller assembly was fixed (not adjustable), while the rear roller was adjustable with a second hole for the adjustment screw. REQUIRES MINOR MODIFICATION. Replace with patio door roller 13042. You will need to drill new holes for the top mounting screw and frame / adjustment screw. An additional 10/32 top mounting screw and 1/4-20 frame screw are needed for each roller. The existing hole for the adjustment screw becomes the frame screw. To install drill a hole in the bottom rail to secure the new roller with a 10/32 screw, positioning the end of the new roller close to the old roller; drill a new hole for the adjustment screw that matches the new position; drill a new hole for the frame screw if needed, enlarging slightly if necessary; install the bottom rail on the door and then the side; secure with the 1/4-20 frame screw; be sure the adjustment screw is accessible; then reinstall the door and adjust the roller.
DIMENSIONS
| Specification | Inches | Metric |
|---|---|---|
| Wheel Diameter | 1-1/2 inch | 38.1 mm |
TECHNICAL SPECIFICATIONS
| SPECIFICATION | VALUE |
|---|---|
| Manufacturer | Patio Door Parts |
| SKU / Part No. | 13991 |
COMPATIBILITY
| WINDOW / DOOR SERIES | FITS |
|---|---|
| Patio Door (Standard) | ✓ |
| Sliding Glass Door | Check SKU |
| French Door | Check SKU |
| Folding / Bi-fold Door | Check SKU |
| Other Brands | Contact Us |
CUSTOMER REVIEWS
Reviews are coming soon. Need help confirming fit? Ask a door expert.
Most in-stock parts ship the same business day. Most orders ship within 2 to 5 business days.
Contiguous US rates
Alaska and Hawaii may be extra.
| Method | Rate |
|---|---|
| USPS Snail Mail (First Class, 10 to 21 days) | $11.95 |
| USPS Priority Mail (7 to 10 days) | $14.95 |
| UPS Ground | $19.50 |
| 2nd Day Air UPS | Call office |
Carrier may differ from the option selected at checkout based on size, weight, and destination. Prefer a specific method? Call our office or note it at checkout.
International
- Canada: $49.95 (about 10 to 15 business days once shipped)
- Mexico and outside North America: $69.95 (about 10 to 15 business days once shipped)
- Customer is responsible for duties and import taxes
For returns or cancellations, see our returns page. Full details on damaged orders, packing, and policies are on our shipping page.
How to confirm fit
Wheel diameter is the size of the round wheel across its center. Measure the wheel only, not the metal housing.
Measure this
Across the center, outer edge to outer edge. Ignore the housing, axle heads, rivets, and adjustment screw.
- Retract the rollers and remove the door panel if needed.
- Slide the roller assembly out of the rail.
- Find a less-worn spot on the wheel (flat spots read small).
- Measure through the center with a ruler or calipers.
- For tandem, measure one wheel only. Do not add both together.
Edge tip: Flat has a smooth rim. Concave / grooved has a U or V in the middle.
Open full wheel guideHousing width is the metal cassette size side to side. It is the key fit dimension for most patio door rollers.
Measure this
Metal housing side to side where the cassette fits the door pocket. Ignore the wheel, tabs, and overall length.
- Retract the rollers and remove the panel if needed.
- Slide the metal housing out of the bottom rail.
- Look at the narrow side of the housing, not the wheel face.
- Measure side plate to side plate across the main metal body.
- Ignore lips, tabs, and flanges that stick out.
Do not use: wheel diameter, tab length, or the rail opening as housing width.
Open full housing guideTab style is the back mounting shape. Match the tab first, then confirm diameter and housing in the Roller Finder.
How to inspect
- Lift or tip the door panel enough to reach the bottom rollers.
- Loosen the adjustment screw and slide the housing out.
- Hold the housing so you can see the back clearly.
- Compare the mounting shape to the tab photos on the identify page.
- Photograph the back straight on, plus one side view, before you order.
Tab style is independent of wheel diameter and material.
